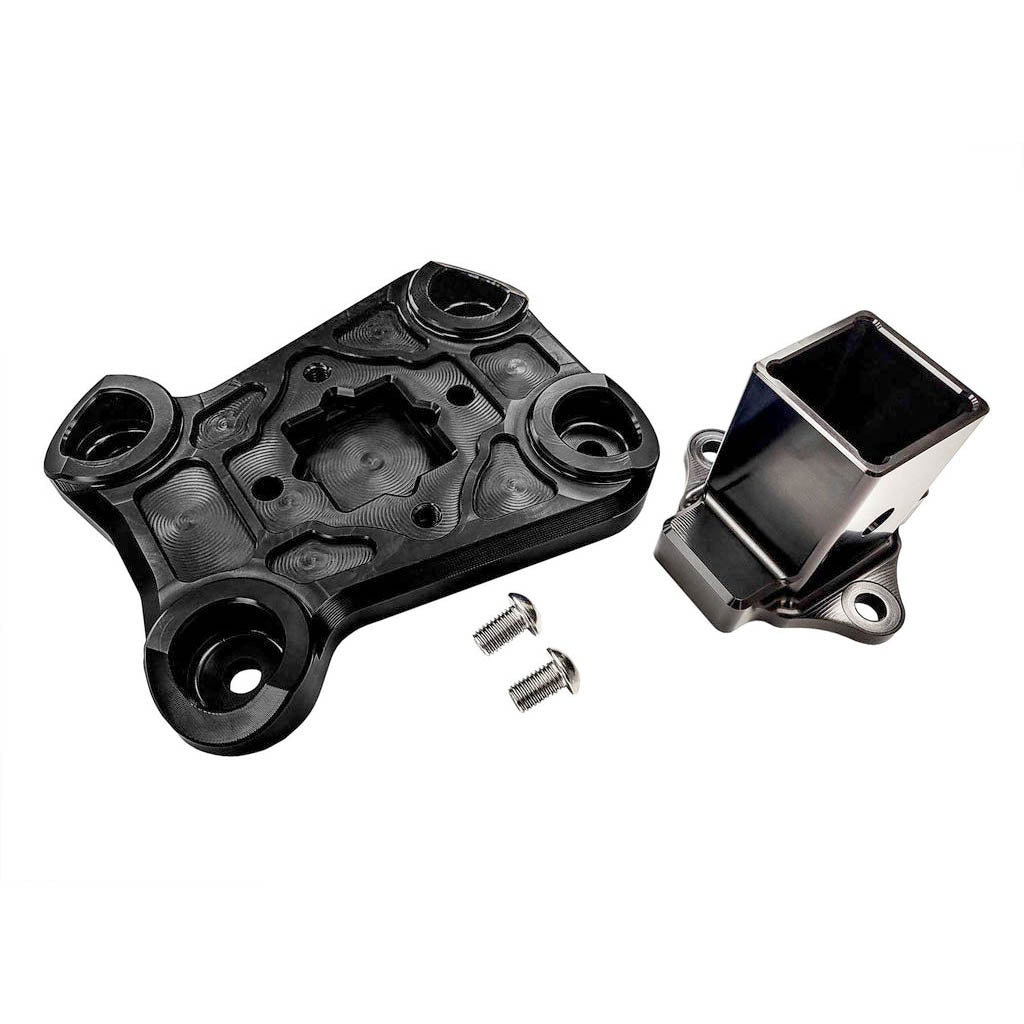

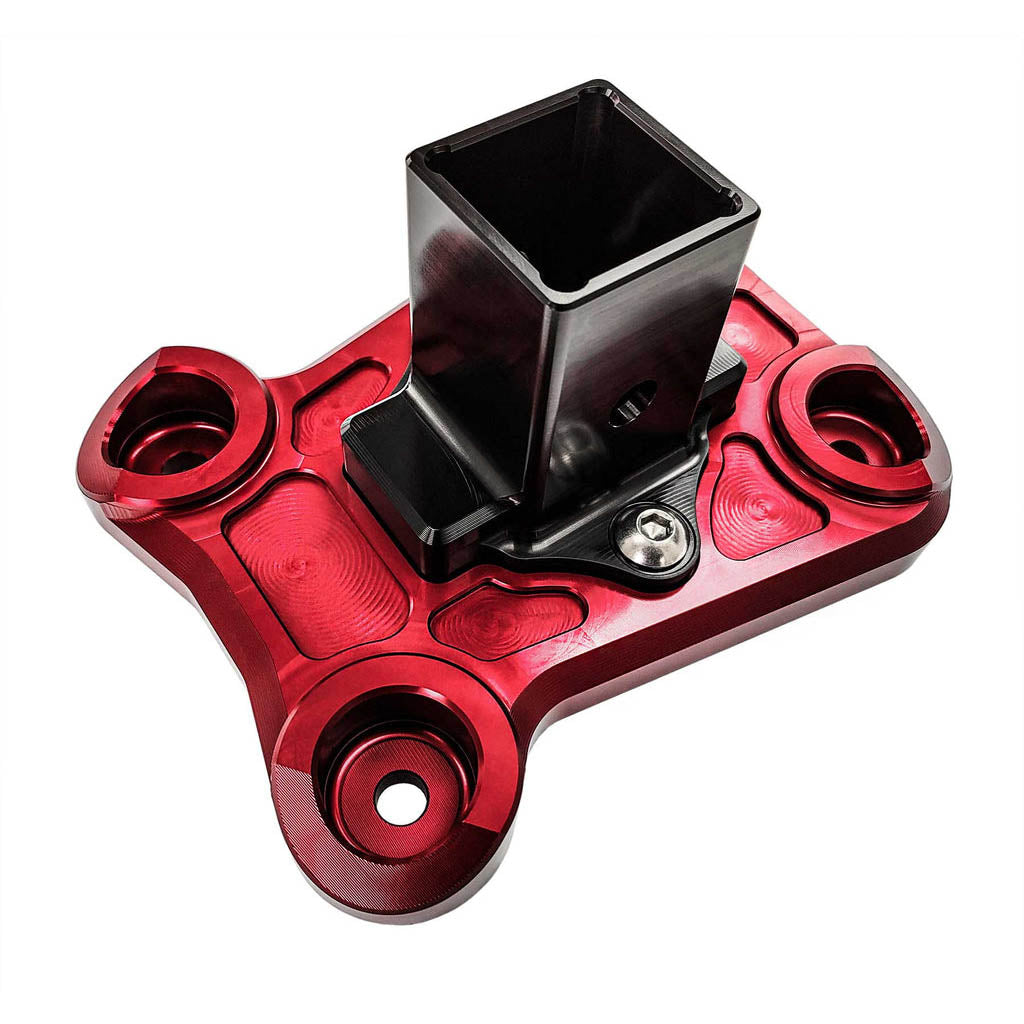

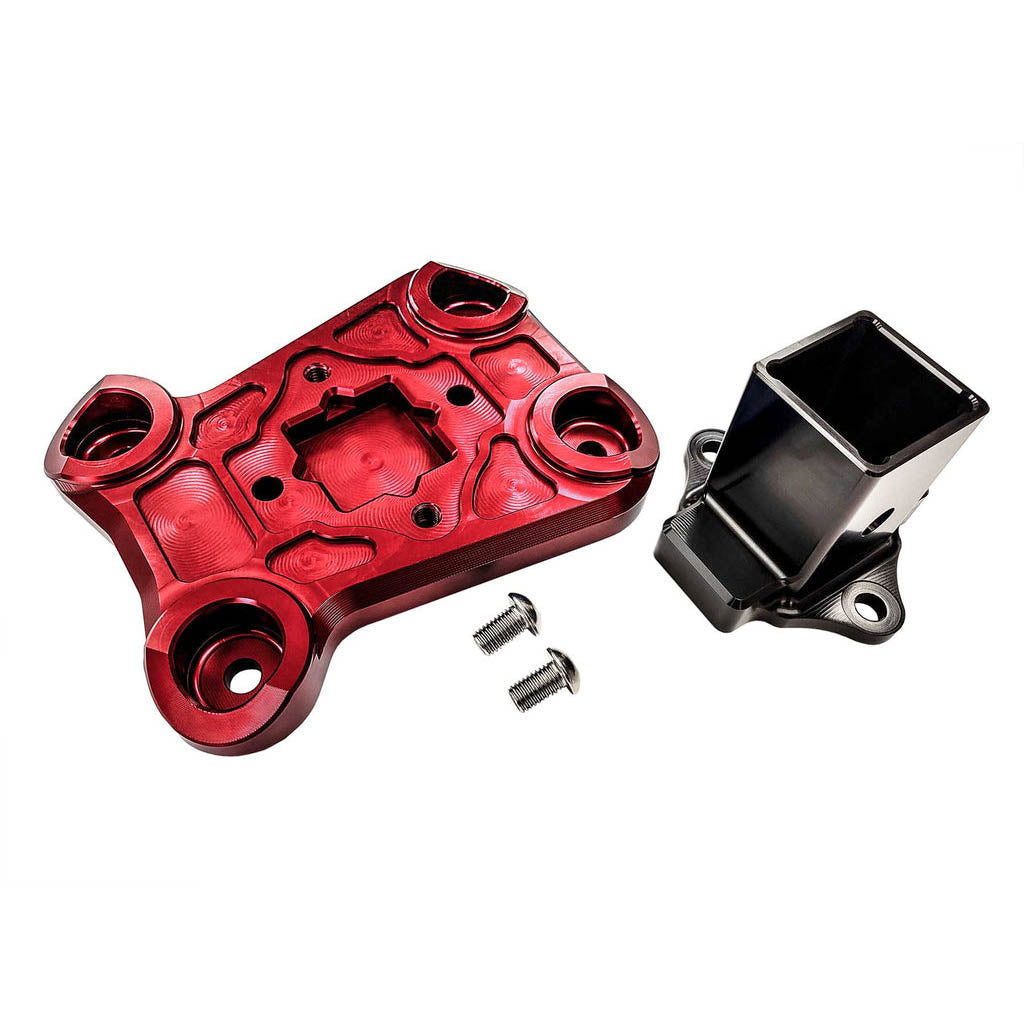

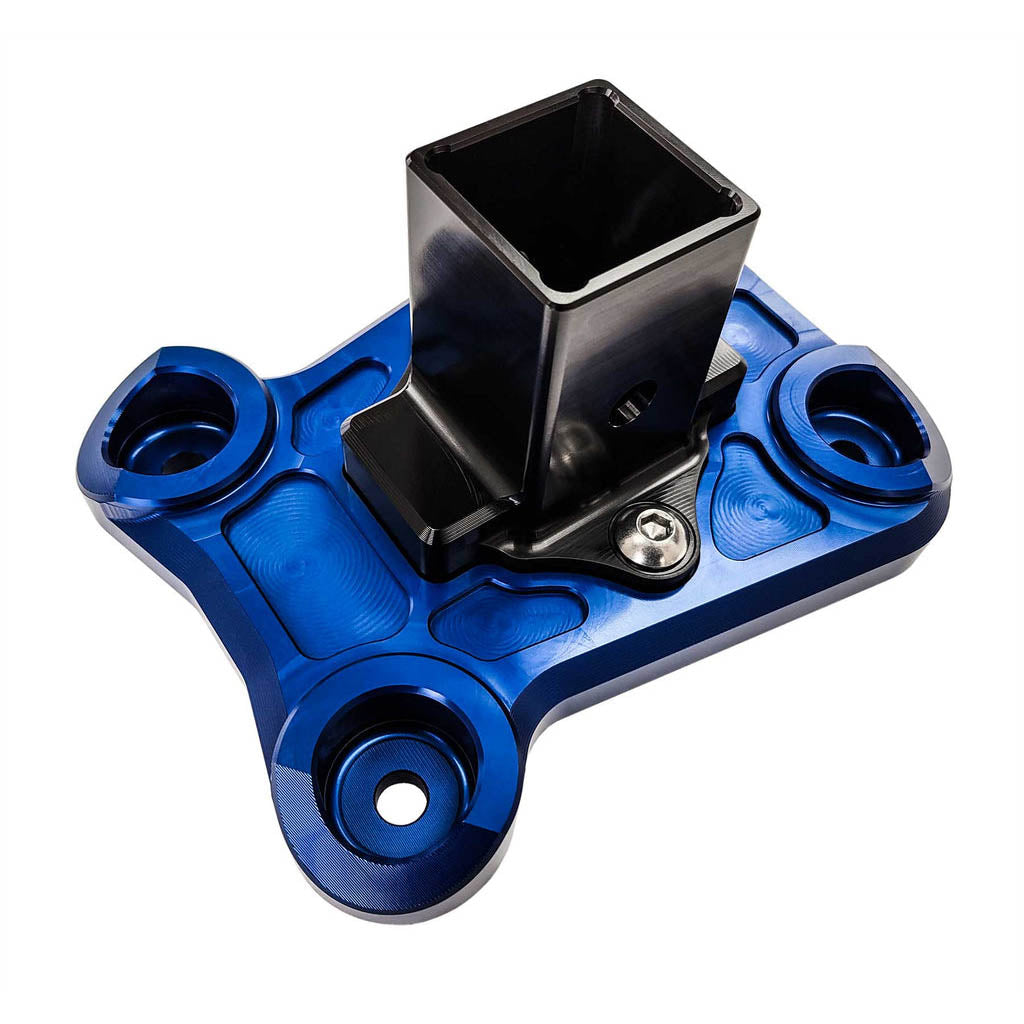

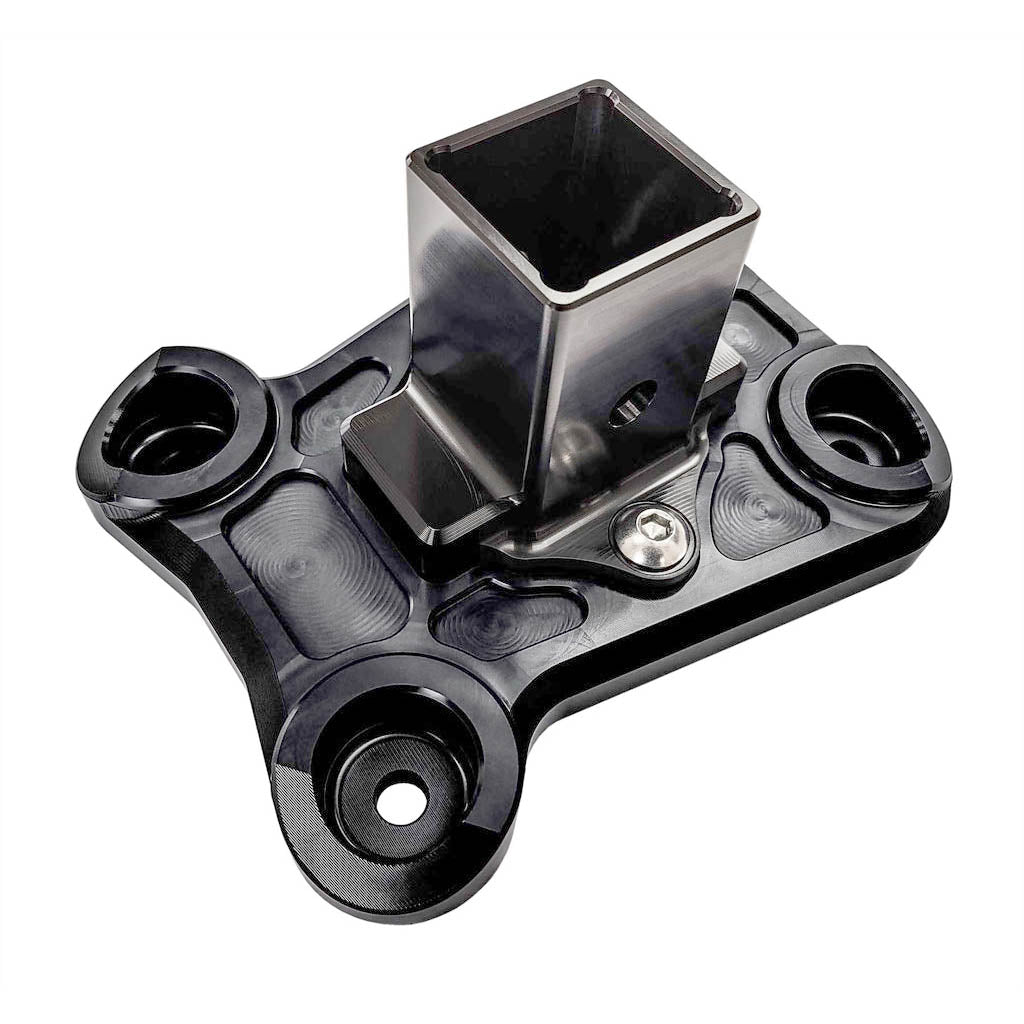

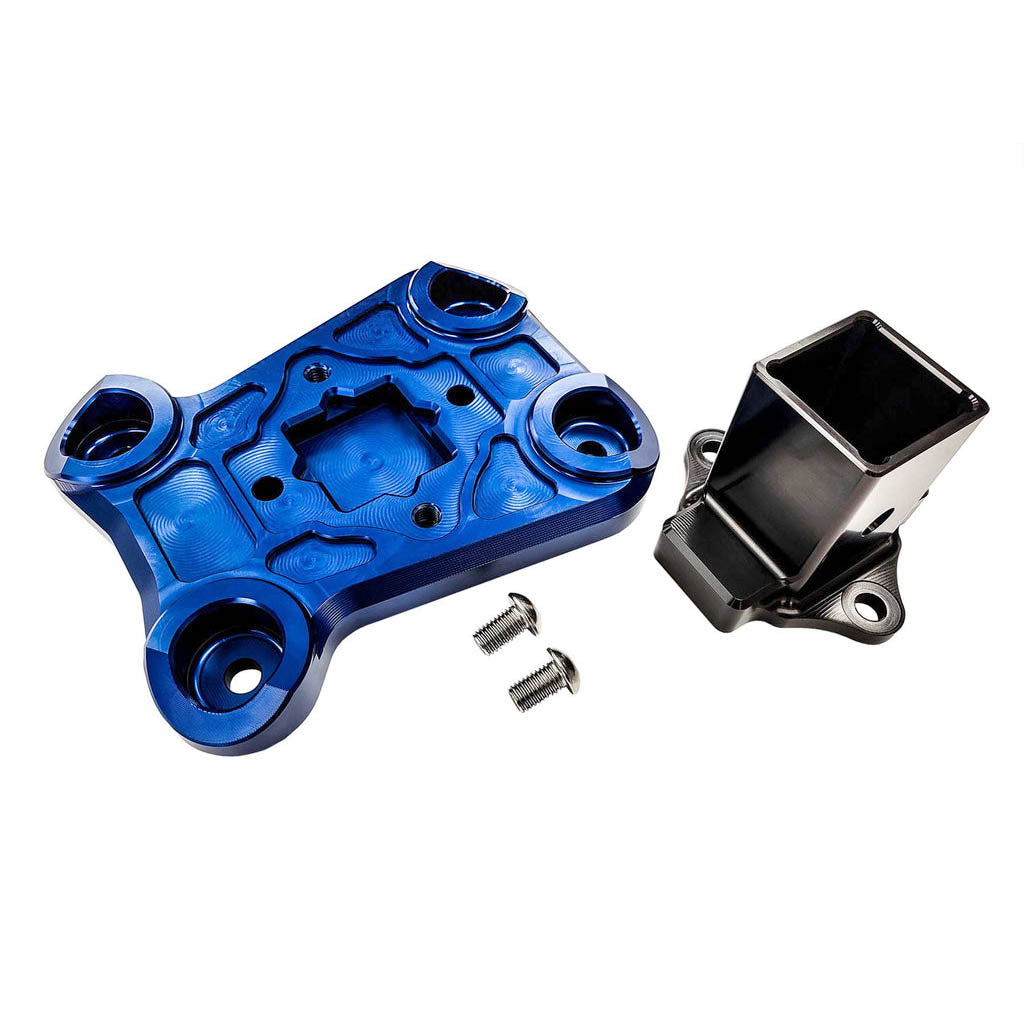

Polaris RZR Pro R/Turbo R Rear Plate with Hitch

Polaris RZR Pro R/Turbo R/Pro S Rear Plate with Hitch

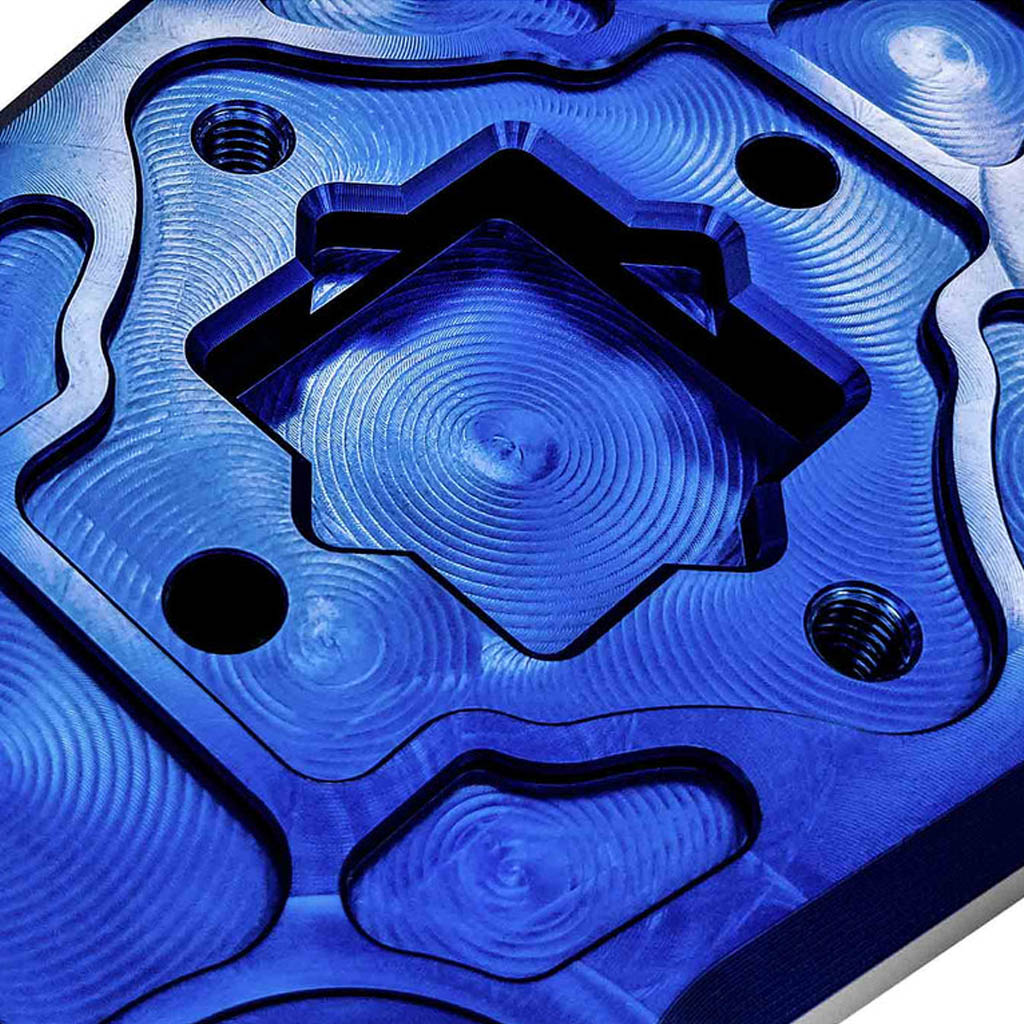

Keep your back end in shape with a rear radius rod plate from KCB Offroad. The factory rear plate can flex under extreme loads, affecting handling and causing premature component wear. These one-piece 6061 billet aluminum rear plates keep everything locked in, eliminating flex and improving handling. All KCB rear plates are compatible with factory and aftermarket radius arms and will not interfere with suspension travel.

• Direct Bolt-On Structural Reinforcement

• Eliminates Frame Flex and premature component wear
• Red, blue, and black anodized or clear coat (machined) plate finish
  • Note: BLACK PLATE CURRENTLY SOLD OUT
• Machined 6160 Billet Aluminum Construction
• Engineered and Manufactured in the USA

Installation

KCB Rear Plates are bolt-on upgrades installed with simple tools and without any modifications to your rig. Each plate comes complete with all the necessary hardware for installation.

Manufacturing

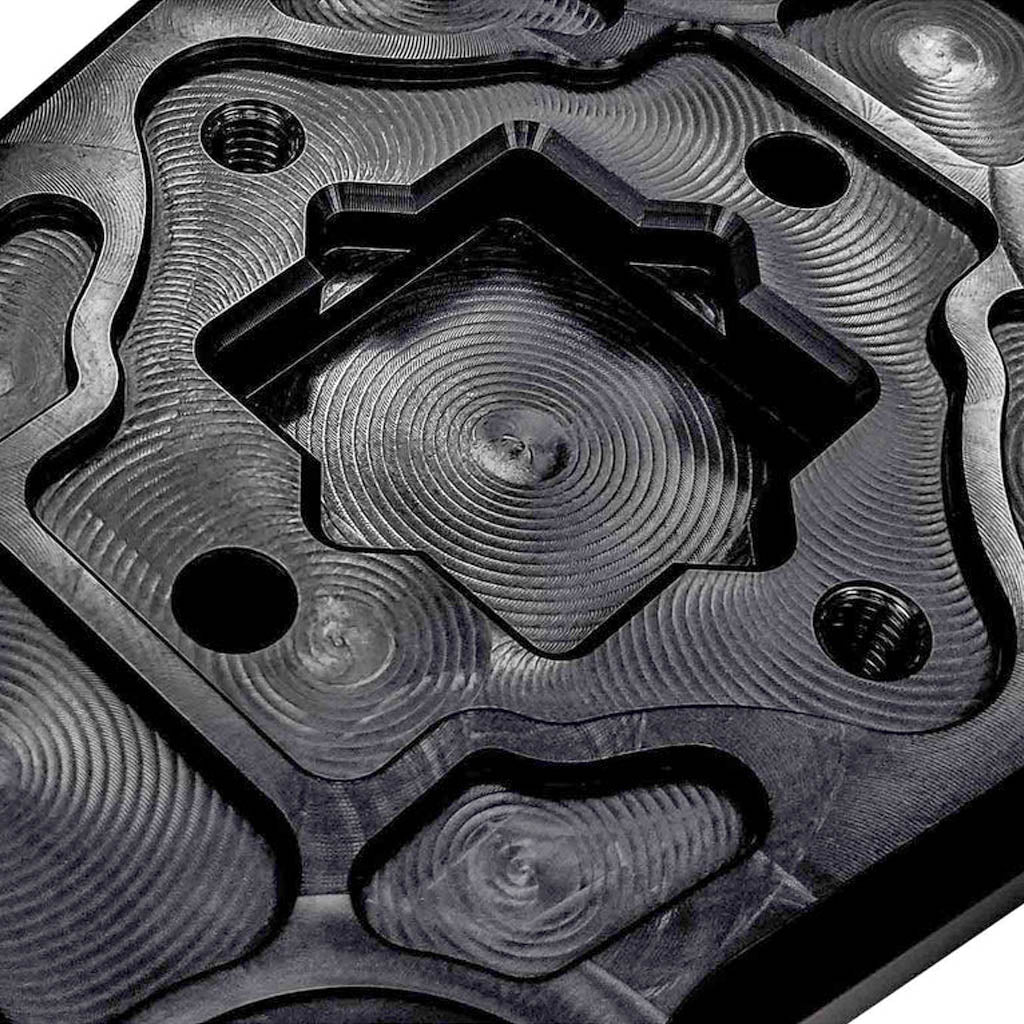

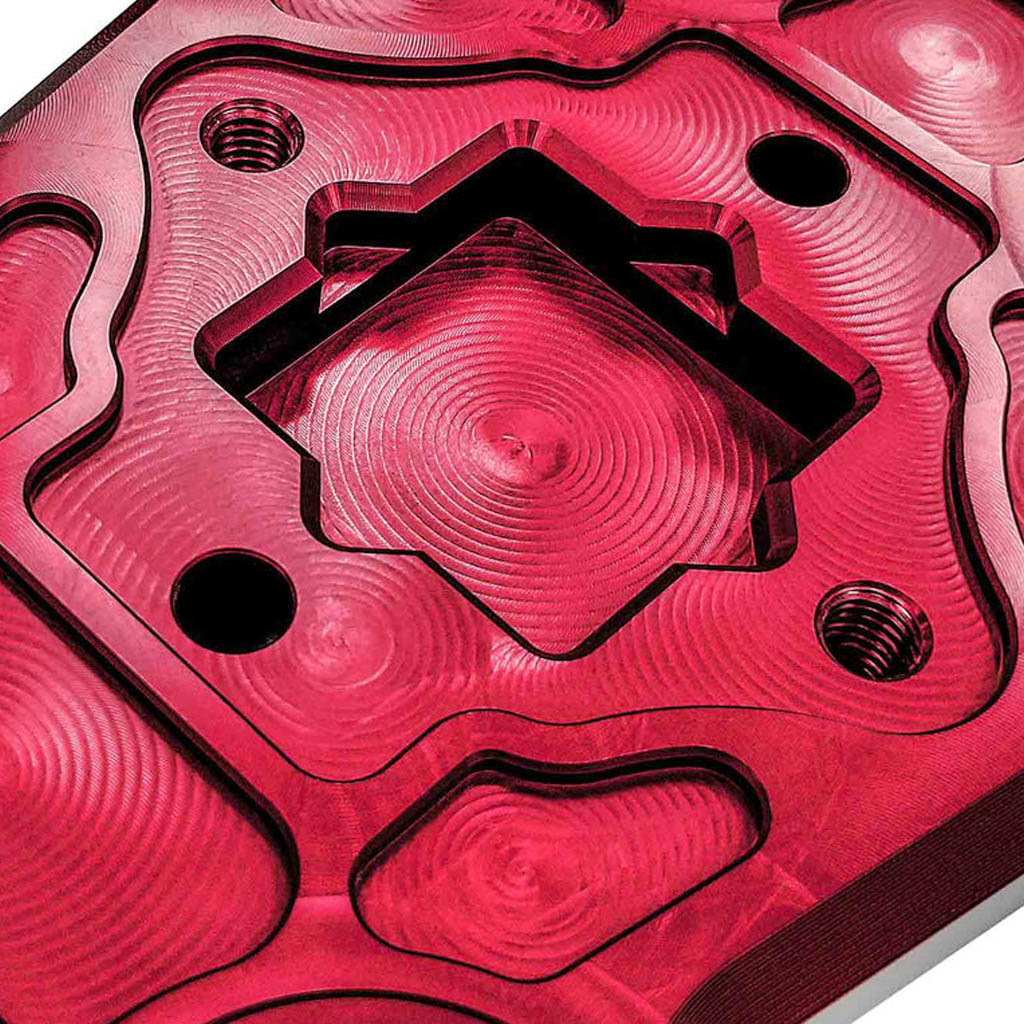

KCB aluminum rear plates are manufactured in the USA and cut from aircraft-quality 6061 aluminum billet using advanced machining processes and proven design principles. Each part we make has been tested for fit and performance, so you can trust them to deliver when you need them most.

Fitment

• Polaris RZR Pro R

• Polaris RZR Turbo R
• Polaris RZR Pro S

Installing your new KCB Offroad RZR Pro R Backing Plate

NOTE: You will notice that if you put your new KCB Offroad RZR Pro R/Turbo R/Pro S Backing Plate up to the bolt holes for securing it in place, that the holes on your vehicle and the holes on the plate do not align. This is because your new KCB Offroad Pro R/Turbo R/Pro S Backing plate holes are set at compound angles, and only align when the plate is set in its proper position, separated from the back of the vehicle by approximately 2”.

(1)   Starting with the top rods, bring up the rod end off the ground and align it with the appropriate hole. Hold up the new backing plate to the correct position and insert the bolt through the hole. Secure nut gently to the back. Do not tighten anything until all the bolts are in place.

(2)   Repeat step one with the other top rod.

(3)   Then secure both bottom rods in the same way.

(4)   You may need to adjust the tires by hand to get everything to align.

(5)   Once all the bolts and nuts are secured through the appropriate rod ends and holes in the plate, tighten to manufacturer’s specifications for a 14mm bolt.

(6)   Congratulations on installing your new backing plate!

Tool Requirements:

·       21mm short socket wrench

·       21mm long socket wrench

·       21mm open ended wrench

·       Car Jack – 3 ton weight rating at minimum
